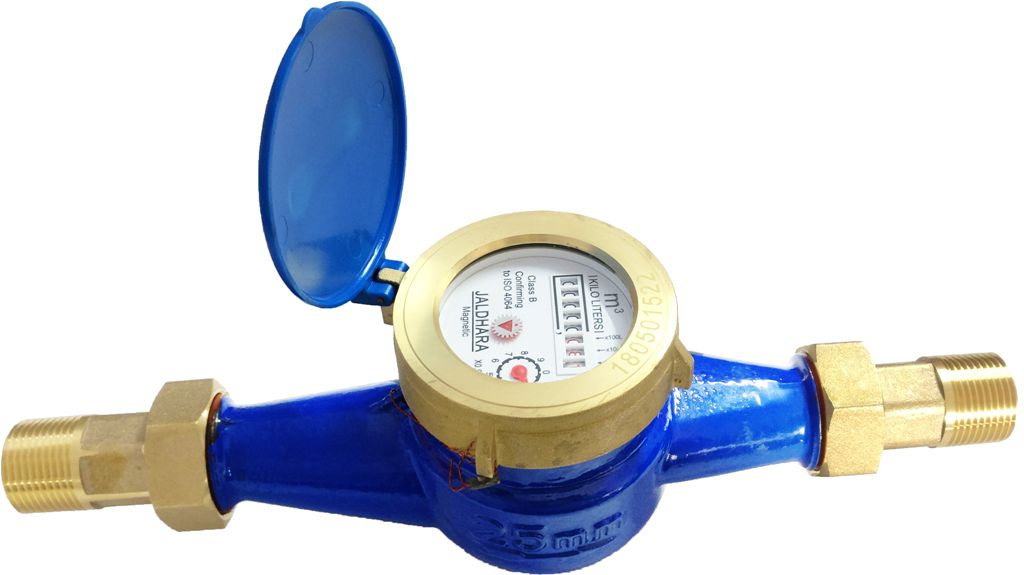

Jaldhara 25MM Water Meter
Specifications for Jaldhara 25MM Water Meter
| Brand | Jaldhara |
| Model No | JWM25 |
| Material of Body | Cast Iron |
| Material Of Cap Ring, Nut, Nipple | Brass |
| Material Of Mechanism | ABS Plastic |
| Operating Temperature (Celsius) | Up To 50 |
| Operating Pressure | Max. 16bar |
| Standards | ISO 4064 |
| Meter Class | B |
| Warranty | 1 Year |
| Application | Domestic, Residential, Industrial, Agricultural |
| Meter size in MM | 25MM |
| Overload flow Qmax (m3/h) | 7 |
| Nominal flow Qn (m3/h) | 3.5 |
| Transitional flow Qt (m3/h) | 0.28 |
| Min flow Qmin (m3/h) | 0.07 |
| Min reading (m3) | 0.001 |
| Length (mm) | 225 |
| Width (mm) | 104 |
| Height (mm) | 120 |
| Connecting thread D | G1 1/4B |
| Weight Kg. | 2.6 |
| Max reading (m3) | 99999 |
