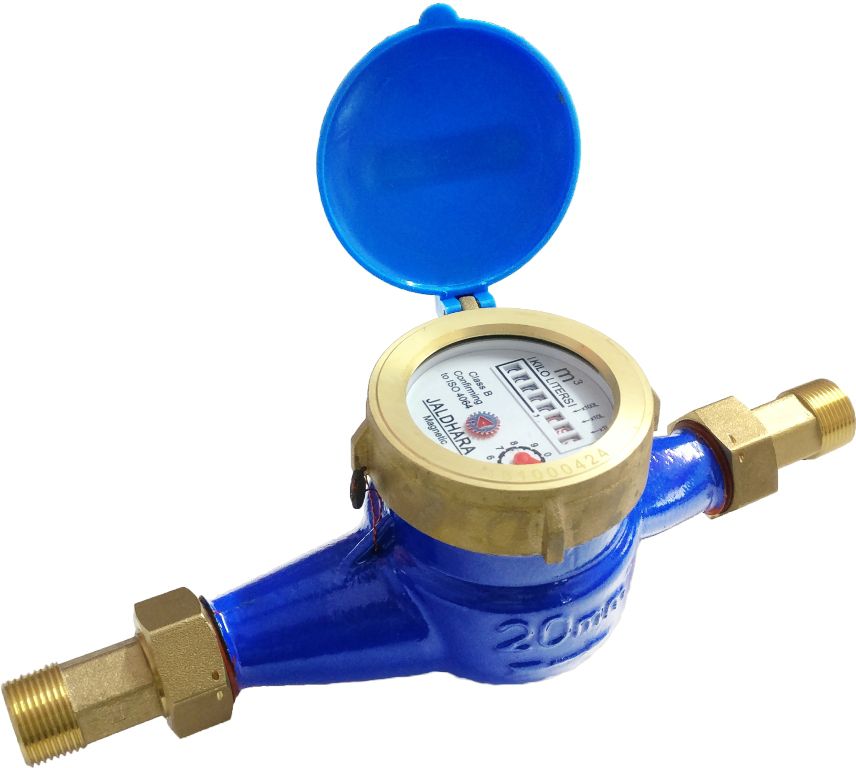

Jaldhara 20MM Water Meter
Specifications for Jaldhara 20MM Water Meter
| Brand | Jaldhara |
| Model No | JWM20 |
| Material of Body | Cast Iron |
| Material Of Cap Ring, Nut, Nipple | Brass |
| Material Of Mechanism | ABS Plastic |
| Operating Temperature (Celsius) | Up To 50 |
| Operating Pressure | Max. 16bar |
| Standards | ISO 4064 |
| Meter Class | B |
| Warranty | 1 Year |
| Application | Domestic, Residential, Industrial, Agricultural |
| Meter size in MM | 20MM |
| Overload flow Qmax (m3/h) | 5 |
| Nominal flow Qn (m3/h) | 2.5 |
| Transitional flow Qt (m3/h) | 0.20 |
| Min flow Qmin (m3/h) | 0.05 |
| Min reading (m3) | 0.001 |
| Max reading (m3) | 99999 |
| Length (mm) | 190 |
| Width (mm) | 99 |
| Height (mm) | 106 |
| Connecting thread D | G 1B |
| Weight Kg. | 1.7 |
