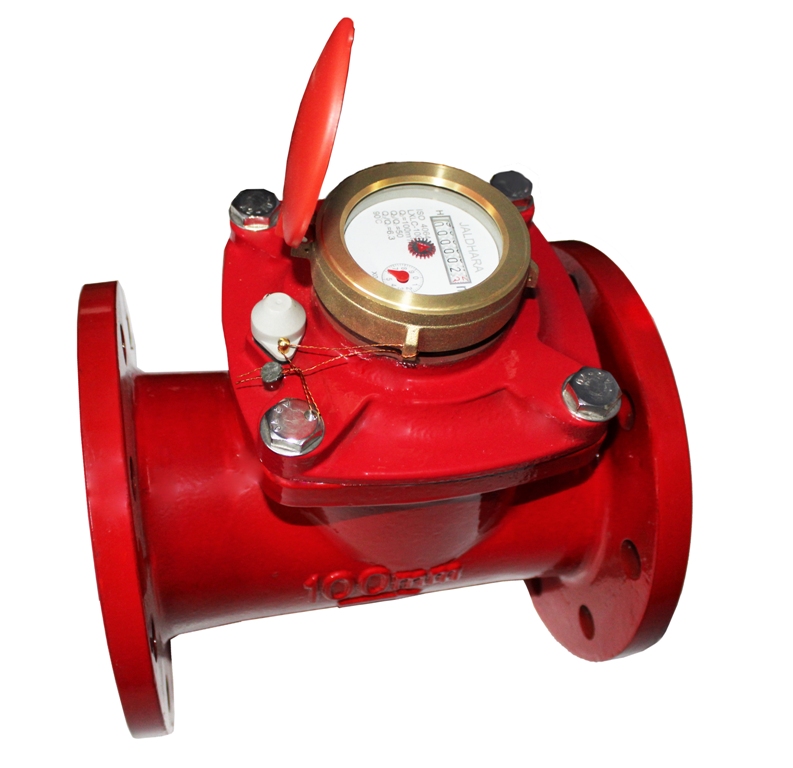

Jaldhara 100MM Hot Water Meter
Specifications for Jaldhara 100MM Hot Water Meter
Brand | Jaldhara |
Model No | JWMH100 |
Material of Body | Cast Iron |
Material Of Cap | Brass |
Material Of Mechanism | ABS Plastic |
Operating Temperature (Celsius) | Up To 90 Degree |
Operating Pressure | Max. 16bar |
Standards | ISO 4064 |
Meter Class | B |
Warranty | 1 Year |
Application | Domestic, Residential, Industrial, Agricultural |
Meter size in MM | 100MM |
Overload flow Qmax (m3/h) | 100 |
Min reading (m3) | 0.01 |
Max reading (m3) | 999999 |
Length (mm) | 250 |
Width (mm) | 215 |
Height (mm) | 265 |
Weight Kg. | 17.5 |
Connecting Bolt | 8M16 |
